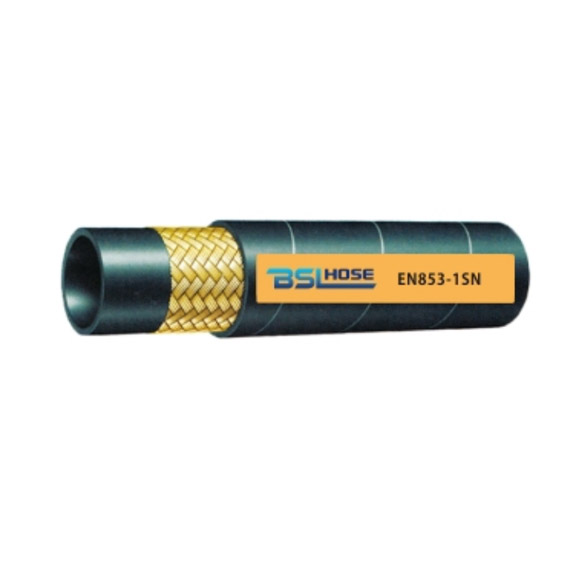

ONE STEEL WIRE BRAID REINFORCED, RUBBER COVERED HYDRAULIC HOSE
Applications: Petroleum/Water base hydraulic fluids within a temperature range of –40 to +100 °C by the manufacturers of both the hose and the fluid.
Inner Tube: An inner tube of oil resistant synthetic rubber
Reinforcement: A single steel wire braid reinforcement

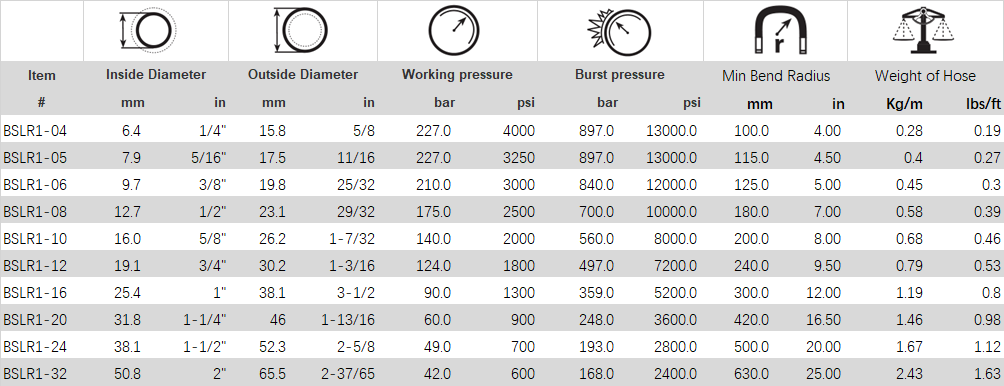

This section covers hose for use with petroleum base hydraulic fluids within a temperature range of –40 to +100 °C and with water base hydraulic fluids within the temperature ranges agreed upon by the manufacturers of both the hose and the fluid. Operating temperatures in excess of +100 °C with petroleum base hydraulic fluids can materially reduce the life of the hose. Following maximum working pressure and minimum bend radius are specified.

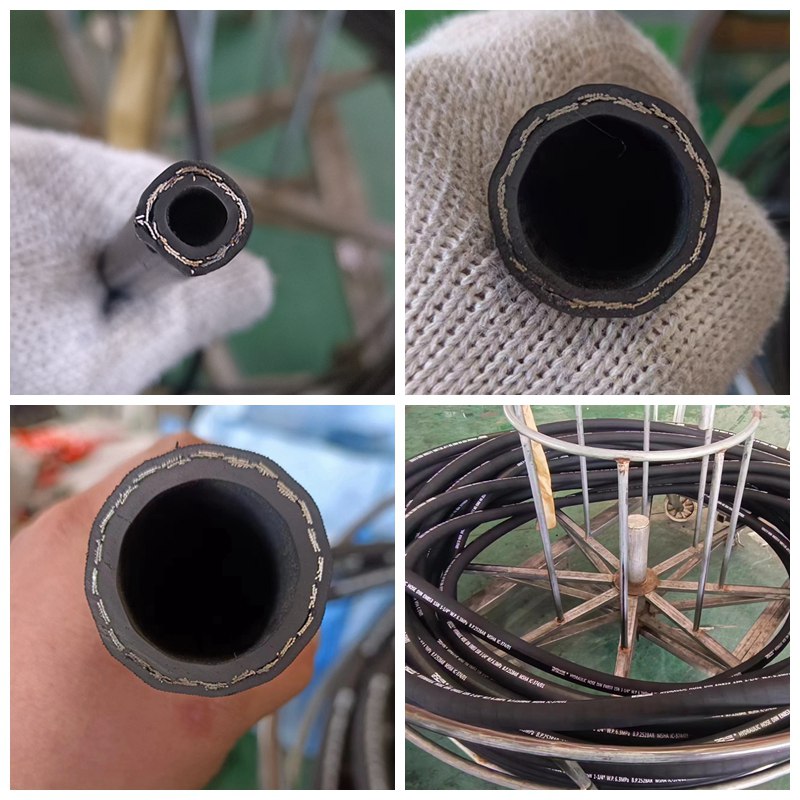

Construction: Synthetic rubber tube, single wire braid reinforcement and synthetic rubber cover.
Operating Temperature Range:–40°C to +100°C [–40°F to +212°F]
Application: Hydraulic system service with petroleum and water-base fluids, for general industrial service.
